Sample Tube Size Identification

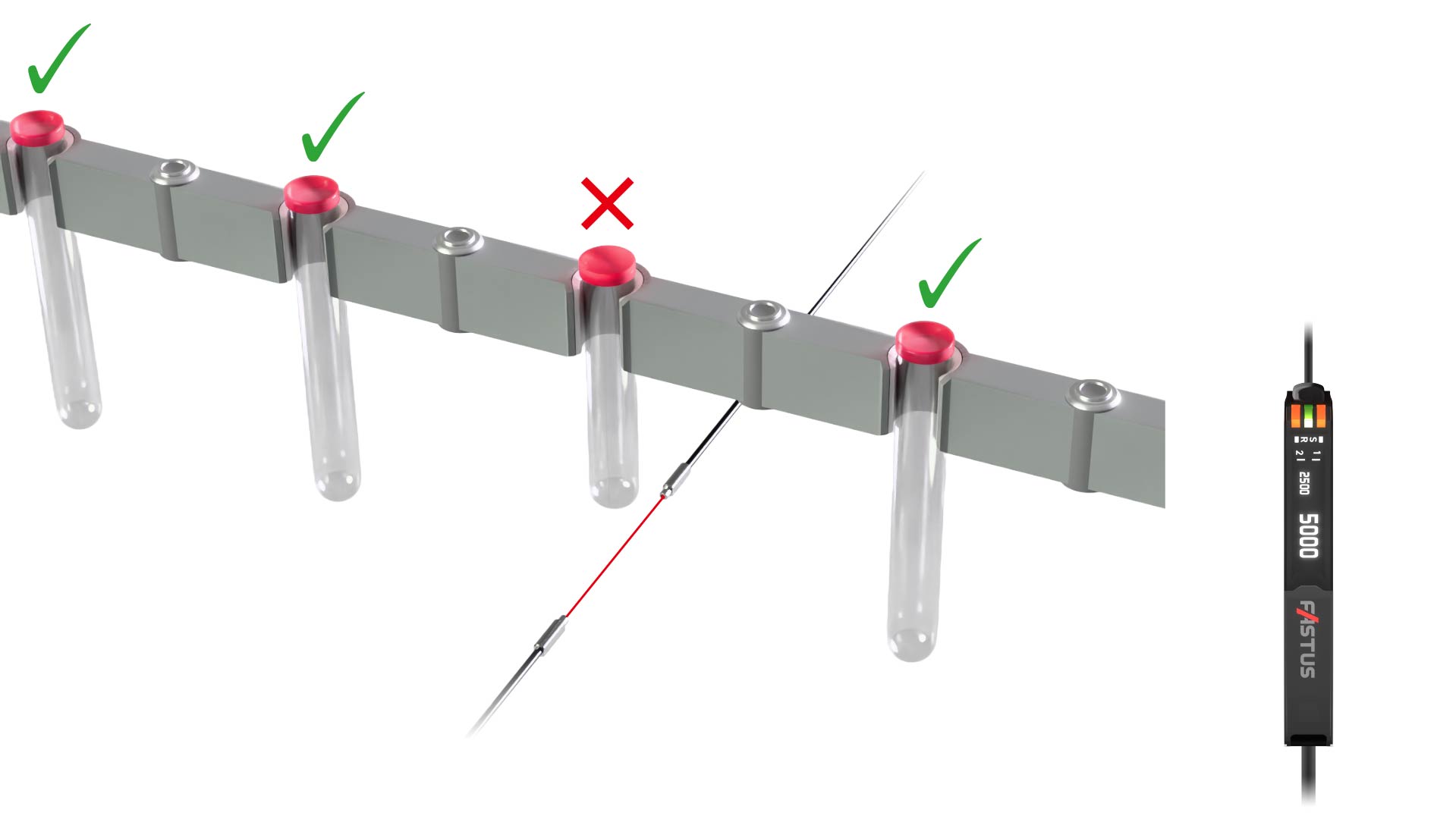

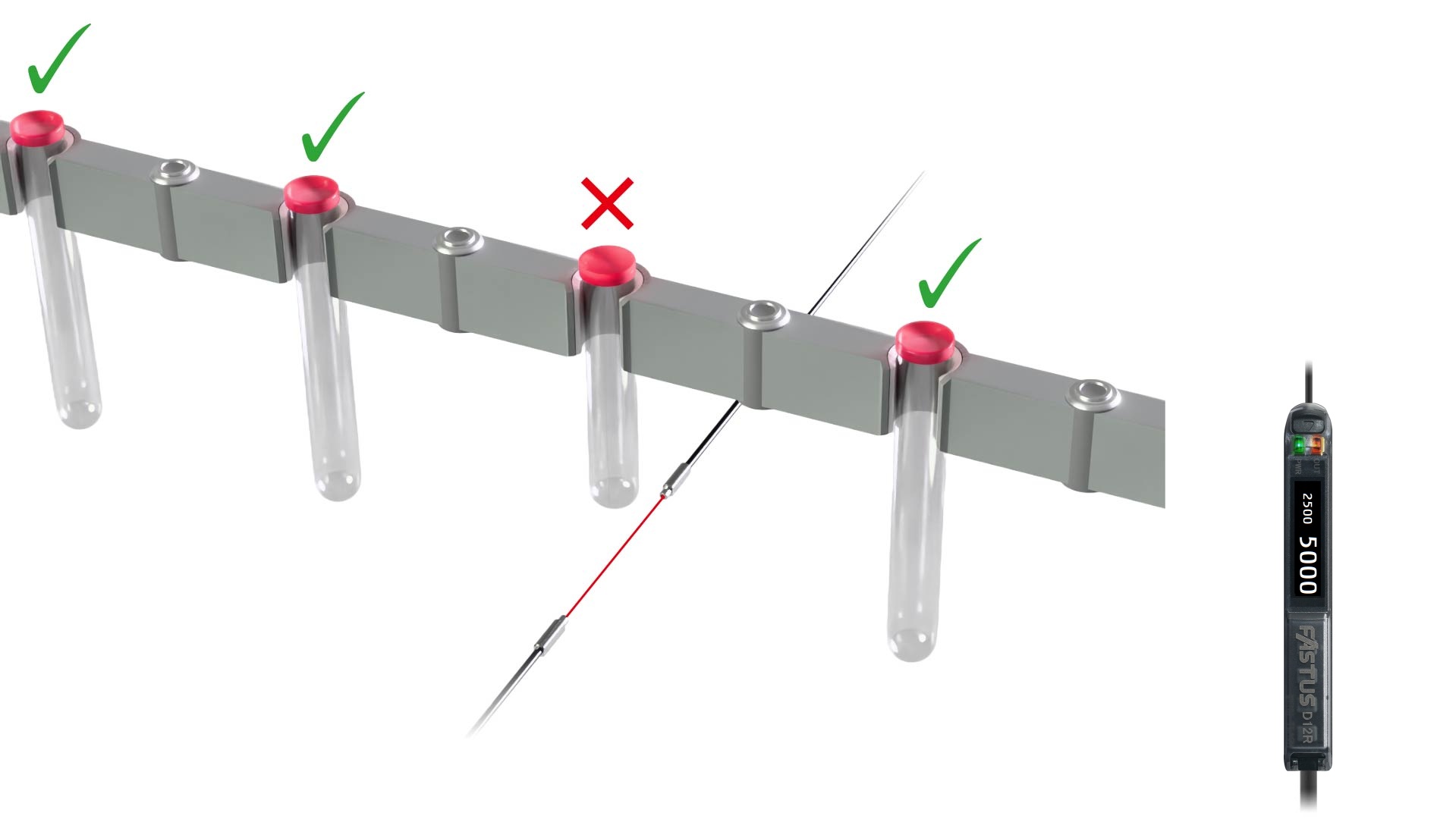

The NF-TB01 fiber-optic cable and D12R digital fiber-optic sensor are used to identify the length of sample tubes. By installing the fiber-optic cable at a position where shorter tubes do not interrupt the optical path, the sensor remains in a light-received state when a short tube is present and changes to a light-blocked state when a long tube is present. This difference in detection status enables reliable identification of tube length.

• Fiber-Optic Cables

  NF Series Thread type

  Type that can be mounted with threaded nuts Fiber-Optic Sensors



• Fiber-Optic Sensors

  D12R Series

  Easy-to-Use, Simple Fiber-Optic Sensors
