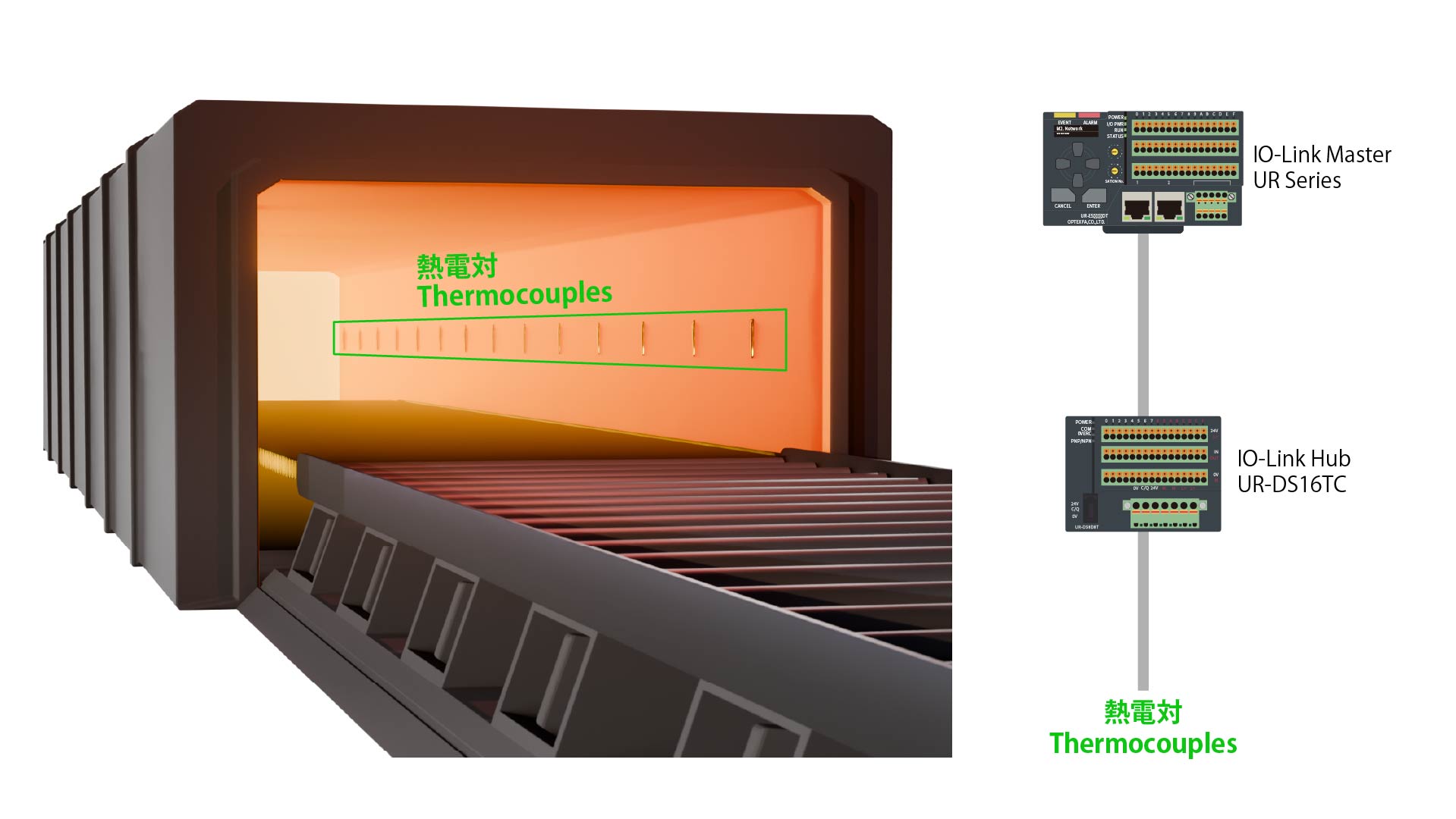

Continuous furnace condition monitoring with IO-Link
In continuous furnaces, it is important to simultaneously monitor multiple points to ensure that the furnace temperature is being controlled as specified and that no temperature variations are occurring. The IO-Link Hub UR-DS16TC enables cost-effective multi-point temperature monitoring with significantly reduced wiring requirements. This IO-Link Hub can transmit temperature data collected from up to 16 thermocouples over a single 3-core cabtyre cable. By connecting to a field network through the IO-Link master UR-ES16DT, abnormal furnace wall temperatures and changes in temperature distribution can be monitored in real time from a higher-level control system. This solution significantly reduces the complex wiring traditionally required for multi-point temperature measurement, helping to lower equipment installation costs and maintenance effort.
Products Used
-
IO-Link Master
UR Series
Highly functional IO-Link Master for various industrial Ethernet
-
IO-Link Hub
UR-DS Series
IO-Link device that connects multiple standard sensors and actuators to an IO-Link Master. (IO-Link Hub)
