Circuit Diagram
BGS-HL Series
-

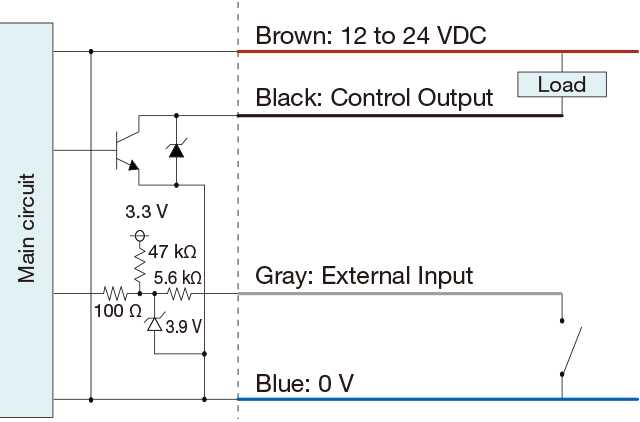

NPN mode
-

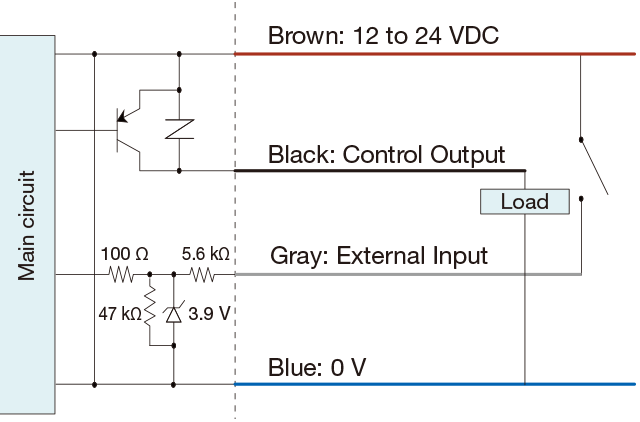

PNP mode
BGS-HDL Series
-

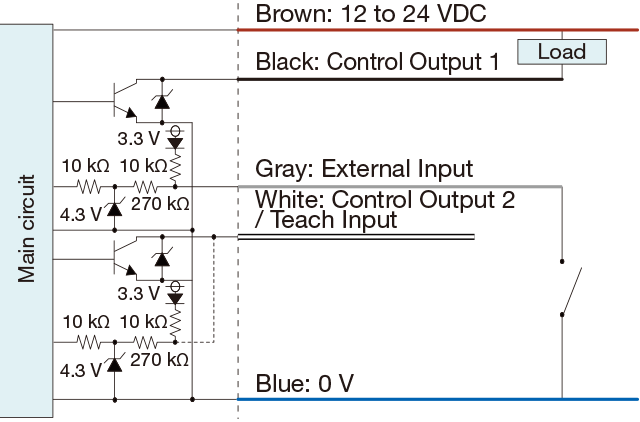

NPN mode
-

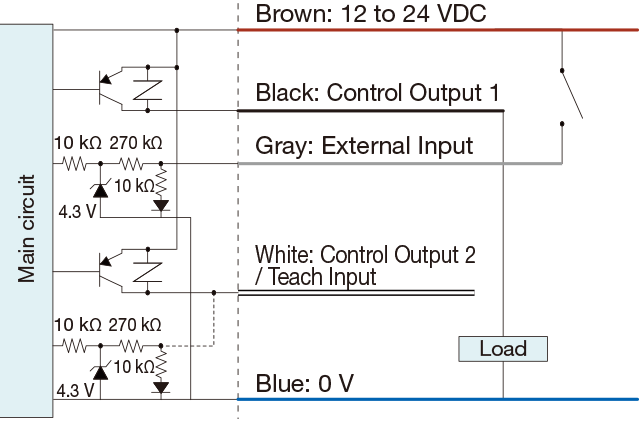

PNP mode
Connector pin configuration (sensor side)
-

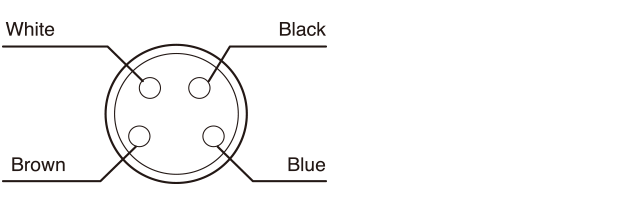

M8 connector type (BGS-HL Series)
-

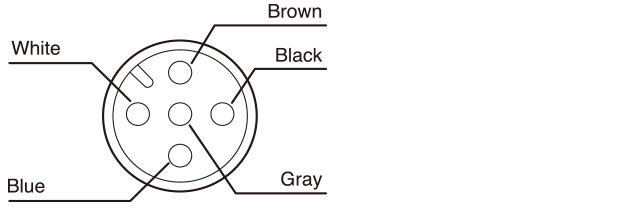

M12 connector type (BGS-HDL Series)
