The MVS-PM-R color pattern matching vision sensor makes it possible to check whether three-color toothbrush sets with the correct color combination are being conveyed.
The color matching mode uses color and color area values for inspection, enabling detection of whether toothbrushes in three colors of blue, pink, and yellow are set.
In addition to checking for incorrect color combinations, checking for defects such as an insufficient number of items is also possible.

The CVSE1-RA easy color area sensor monitors for caps with the wrong color.
With color discrimination possible for 15,000 colors and a high resolution, the CVSE1-RA is able to distinguish between even slightly varied cap colors.
Moreover, the ability to register up to 16 different variations makes it possible to switch instantly to the desired inspection type even with changeovers in product variety.

Checking position of bar code label by color pattern matching camera MVS-PM-R.
It can have up to 16 inspection windows so you can put multiple inspection windows to check if the label is at the correct position or not. It can output inspection result of each window so you will know which part the label is attached.

Print inspection on the date code and lot number printed on packaging film.
MVS-OCR2 has 8 times better resolution than conventional model so it can detect small and wide printing stably.

Checking shape of the spoon by color pattern matching camera MVS-PM-R.
"color area" function will work fine to check shape of the spoon made with wood plate. It will be able to detect lack or clack on the spoon.

Print inspection of white characters on colored pattern by MVS-OCR2.
It can recognize color of the characters so white characters are also able to be recognized correctly by MVS-OCR2.
Not only date code but also lot number can be inspected stably.

Print inspection on packaging film by all in one OCR vision sensor CVS4 series.
It has calendar built-in so it can check date code over night production even if the date code changes at mid night.

Checking existence of characters printed on package by MVS-OCR2.
It can count number of characters on package even if the package got wrinkled because you can setup the threshold of number of characters like N +/- X.

Print inspection on the sealing machine by CVS4-R series.
It is compact all in one vision sensor so you can install in a small machine.

Print inspection on the pillow packaging machine by MVS-OCR2.
It has 32 banks so it can be used for up to 32 different printing.

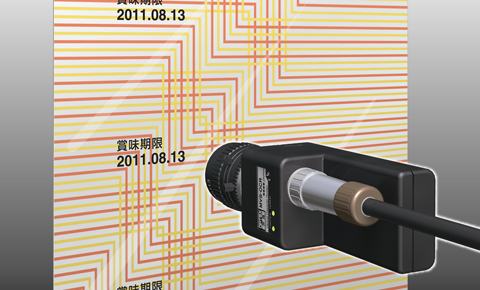

Print inspection on the colored pattern by MVS-OCR2.
It can detect color of characters so even if the background is colored pattern, it can recognize characters stably.

Checking deviation of the handle position of the paper bag by measurement vision sensor MVS-EM-R.
It can have up to 16 inspection windows so position of each part can be checked at one time and also distance of those parts can be measured.

Checking fault package on pillow packaging machine by MVS-PM-R.
When the package sealing is done wrongly, it will show different color of the other side of the package. Color pattern matching camera MVS-PM-R will be able to detect it by "color area" function easily.

Counting number of tooth pick by MVS-EM-R.
By "edge count" function of MVS-EM-R, it can count number of tooth pick.

Detecting package that packed wrongly by checking its shape and color by MVS-PM-R.
"color area" and "contour" function will be utilized for this application.

Detecting joint part of packaging film by CVS2-RA.
It has long focal depth so it can get clear images even if the film position is deviated. It can register 2 colors so it can detect a tape at joint part of the packaging film even if those colors are similar.
